Importing Cisco IOU VM into Virtualbox

Importing Cisco IOU VM into Virtualbox, the Cisco IOU VM can be obtained from this < http://sourceforge.net/projects/gns-3/files/IOU%20VMs/ >.

Download the GNS3 IOU VM.ova file as of latest.

Launched Oracle VM VirtualBox Manager.

File > Import Appliance...

Browse to the download GNS3 IOU VM.ova file

Open the GNS3 IOU VM.ova file.

Select Next

Select Import. Be sure there is enough RAM on the PC/Laptops.

Select Settings. Do not Start yet. Configure the Network Settings.

In the Settgs, ensure Network Adapter 1 is Host-only Adapter on VirtualBox Host-Only Ethernet Adapter.

Power on the GNS3 IOU VM.

Login into the GNS3 IOU VM console with login:password as root / cisco.

Confirm the GNS3 IOU Host IP address is 192.168.56.101.

Use any Internet Browser and goto http://192.168.56.101:8000/upload

Select the Cisco IOU image.
Note: Image cannot be provided but google is always your best friend. The hint I can give is search for this i86bi_linux_l2-ipbasek9-ms.may8-2013-team_track and i86bi_linux-adventerprisek9-ms.152-4.M1

Click upload

Upon complete, the IOU path will be printed on the Files on 192.168.56.101:8000

Proceed to upload other IOS image file till completed.

Do not save any project, just cancel. Edit > Preferences...

Select Add to add the "Virtualbox GNS3 1.0 IOU VM" host IP address into the Remote servers. Apply. Do not click OK yet, we going to configure the IOS on UNIX.

For Cisco IOS, it required a license number to operated hence a license key is required to be pushed to the server. The licence can be download in this link. If you run into any issue with licensing, visit this forum http://forum.gns3.net/topic9032.html .

My personal reference is copy and paste the file iourc.txt that I download into C:\Program Files\GNS3 making it easy for me to just browse to one location.

Once the iourc.txt is specify, select Apply. Do not click OK yet, there is additional settings to be configure in IOU devices.

Adding the IOU device, before that the IOU path field is required. Let take a look how to quickly copy the path.

Confirm the images is upload into GNS IOU VM going into
cd /home/gns/GNS3/images
ls -l
pwd
(All case sensitive for above three line commands)

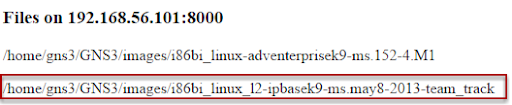

Remember this, there is trick. Using any Internet Browser, open up 192.168.56.101:8000 and the Files on 192.168.56.101:8000 will be displayed. Highlight the path and copy to the next step. I am going to use this L2 Switch image for this illustration.

Select Remote and ensure that Run on server with 192.168.56.101:8000 is selected. It can be on different IP address as long the remote servers is selected corrected.

Copy and paste the IOU image path. For the name, any name can be specify as I choose to use the image name. L2 image is for this illustration, as L3 image is the same procedure.

Drag the IOU L2 Switches from the Switches panel and happy GNS3!. Continued and repeat the steps with a L3 Router as well

Installing VirtualBox 4 and Python 2.7

This required Internet connection. Go to Virtualbox website to download the Windows host installation.

Download and prepared to run the setup.

Select Next >

Select Next > (Leave as Default)

Select Next > (Leave as Default)

Select Yes

Select Install

Select Install to allow it to install USB driver

Select Install to allow it to install Network Adapter Driver

Select Install to allow it to install Network Adapter Driver

Select Finish

Install Python

Browse to python.org website In this illustration, Python 2.7.8 will be installed instead of Pyhton 3.4.X
(X denote the last revision number)

Select Install for all users and Next > (leave as default)

Select Next >

Select Next >

Finish

System Properties

Environment Variables

Set the system’s PATH variable to include directories that include Python components and packages we’ll add later. To do this:
Right-click Computer and select Properties.
In the dialog box, select Advanced System Settings.
In the next dialog, select Environment Variables.

Edit System Variable

In the User Variables section, edit the PATH statement to include this:
C:\Python27;C:\Python27\Lib\site-packages\;C:\Python27\Scripts\;

Command Prompt

Type python to verify that it is working.
